Ford GT Digataly Simulated

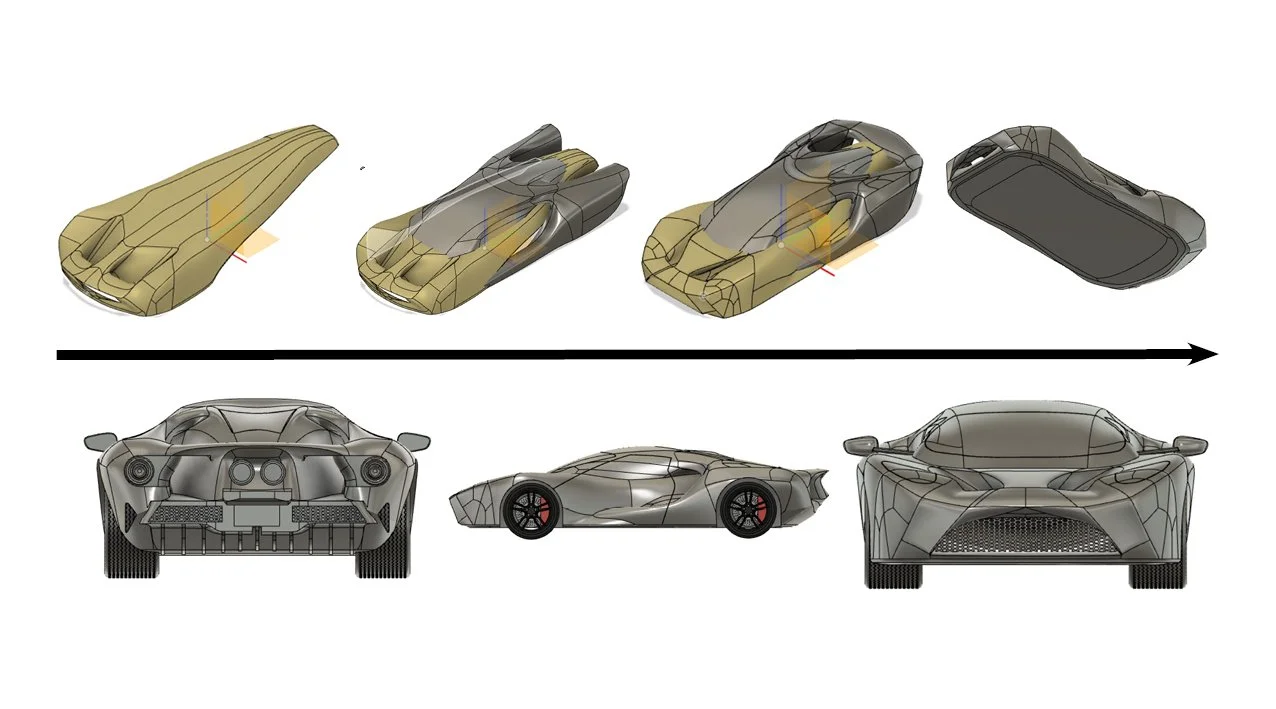

This project focuses on surface modelling a car using Fusion 360. The design is inspired by the Ford GT, incorporating its aerodynamic and performance-driven features.

Once the CAD model is developed, the vehicle will undergo a series of analyses to evaluate its performance, safety, and driver comfort. These assessments will be conducted using ANSYS for engineering simulations and Siemens Jack for ergonomic and human interaction analysis.

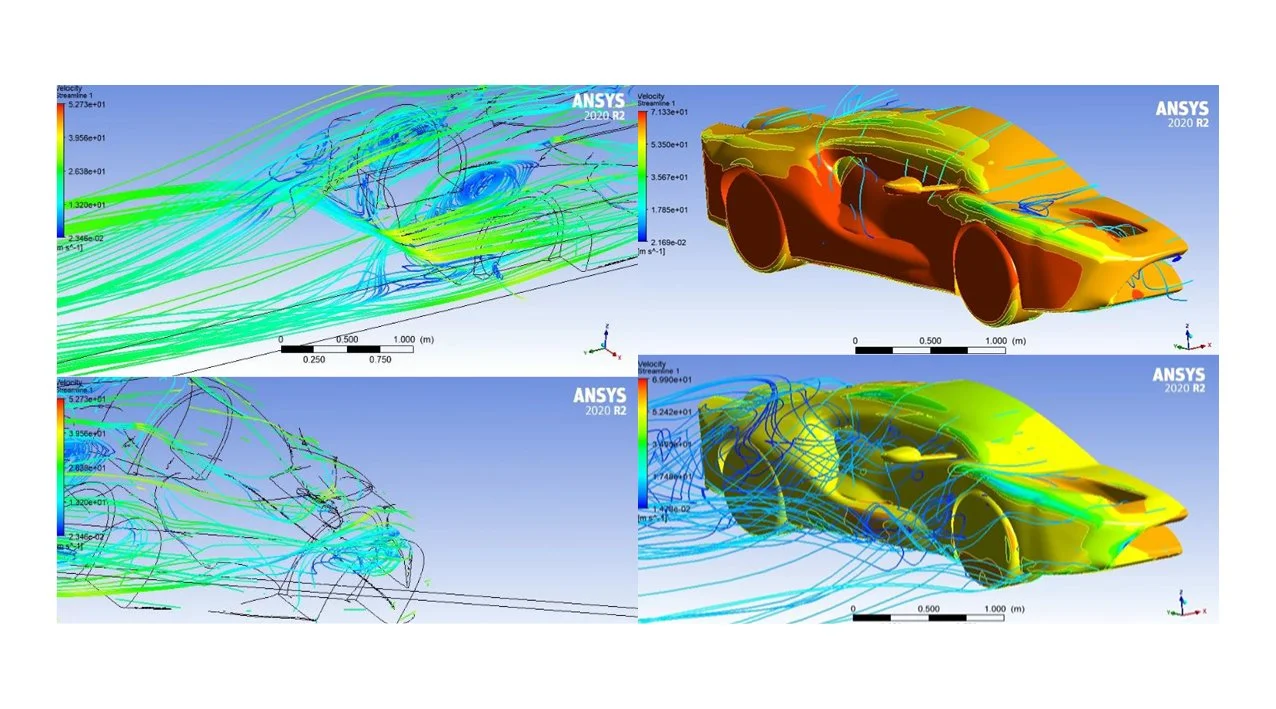

The ANSYS simulation showed smooth airflow overall, but turbulence was found at the rear vent and around the wheel arches. Airflow was also slower beneath the car rather than above, creating pressure differences that gave the car excellent downforce.

A crosswind test was also completed in ANSYS, simulating the car at 70 mph with increasing wind speeds. Based on guidance from the UK Highway Code, instability began when crosswinds exceeded approximately 46 mph.

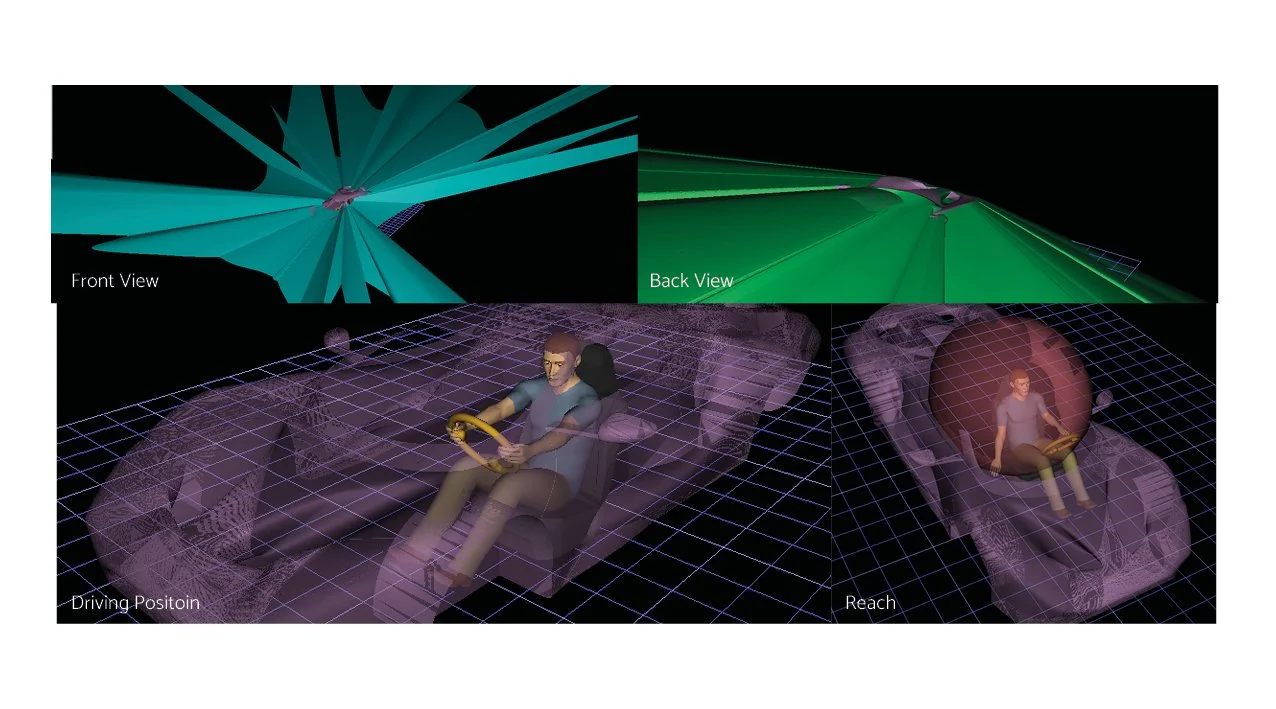

Ergonomic testing using Siemens Jack showed good front visibility but limited rear visibility due to the small rear window. The driving position was comfortable overall, with slight lower back discomfort on long drives, and the cockpit was suitable for any driver under 6'5".
